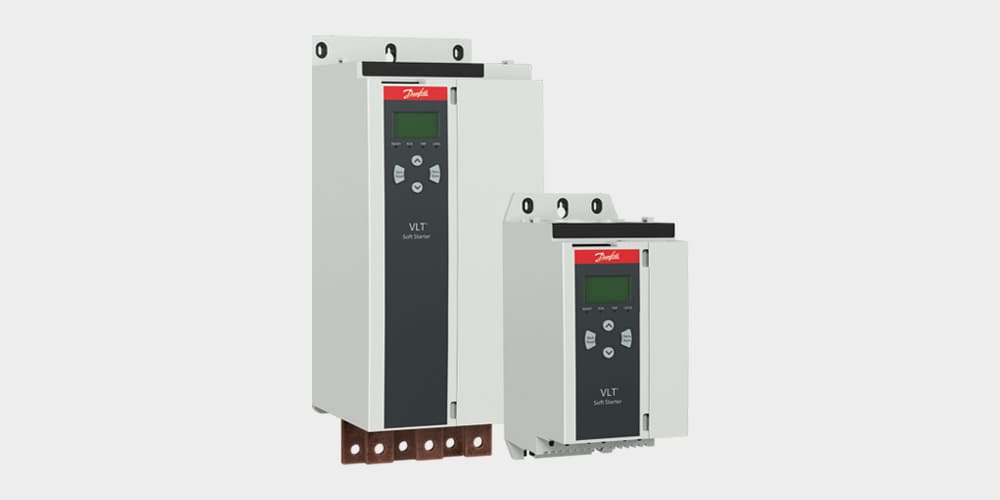

VLT® Soft Starter MCD 600

VLT<sup>®</sup> Soft Starter MCD 600

VLT® Soft Starter MCD 600

The Danfoss MCD 600 enclosed soft starter is designed to make your life easier.This prepackaged, combination soft starter includes a built-in circuit breaker and bypass contactor in a compact, NEMA 12 enclosure. Door mounted operators & pilot devices are standard, including an easy-to-use HMI/keypad with graphical display and quick setup menus. The MCD 600 offers the latest in soft start motor control and protection for superior performance in fixed-speed applications. The HMI/keypad has a graphical, multi-line display with real-time graphing of motor operating performance. An extensive event log (up to 348 individual events recorded) and dynamic QR code onscreen display provide all the data you need, when you need it.Standard and heavy duty models are available to meet your specific application needs including NEMA 3R enclosures as an option. Optional communication cards enable network connections and the USB port allows straightforward upload, download and storage of starter performance information are also available. Product RangeƒStandard stock models: 480V up to 300HP Others available upon requestNEMA 3RNEMA 12

Flexible installation:

  • Wide variety of Ethernet and serial-based communication option cards
  • Application-dedicated smart cards

Increased savings

  • Integrated bypass ensures both high efficiency and harmonic-free operation at full speed, reducing energy consumed and cooling requirements.

Easier to operate with new capabilities:

  • Pump-clean function
  • PowerThrough operation
  • Calendar or run time-based scheduling
  • Enhanced protection delivers increased uptime.
  • Simulation mode with no power to the motor

Mains voltage range

  • 3 x 200-525 VAC (T5)
  • 3 x 380-690 VAC (T7)

Current range and enclosure

  • IP20: 20-129 A (nominal)
  • IP00: 144-579 A (nominal)
Additional Features
  • Advanced start, stop and protection features
  • ƒ
  • Auto start/stop clock
  • ƒ
  • Compact size
  • ƒ
  • DC injection braking
  • ƒ
  • 4-line graphical display
  • ƒ
  • Multiple programming setup menus
Available options
  • Fieldbus communication modules:
  • ƒ
  • EtherNet/IP
  • ƒ
  • ƒ
  • Modbus TCP
  • ƒ
  • ƒ
  • DeviceNet
  • ƒ
  • Modbus RTU
